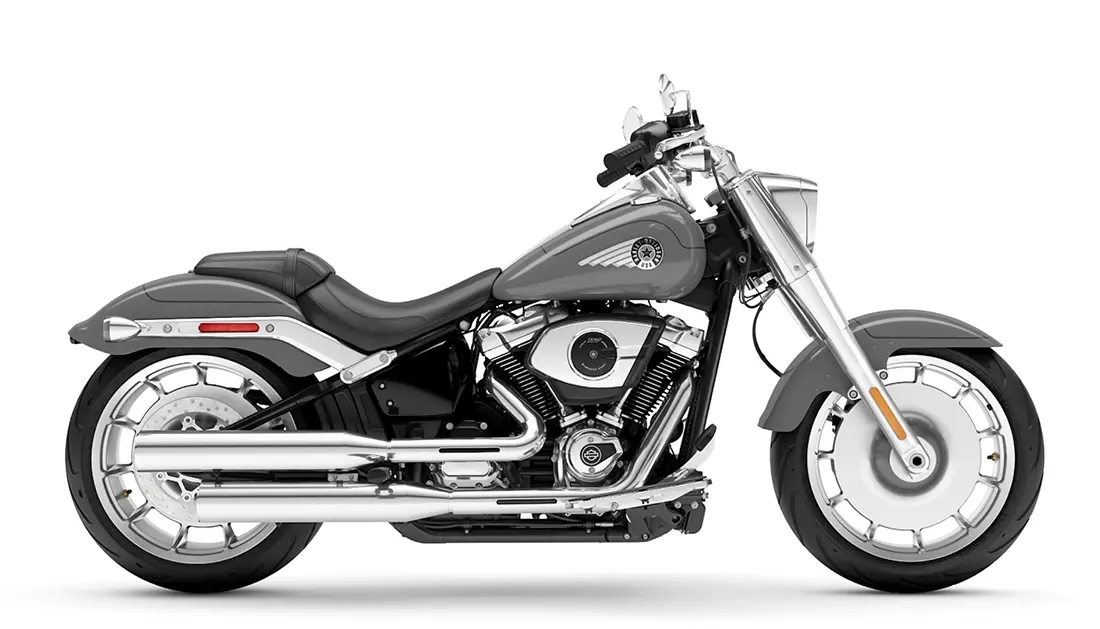

2026 Harley-Davidson Fat Boy 117 (FLFB)
2026 ENQUIRE TODAY

No deposit, finance available from $196.00 per week to approved applicants, enquire today! Applications can be handled in store, online or over the phone!

Click Here To Submit a Finance Pre-Approval Application

Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, ride modes, and fine factory details that honor one of Harley-Davidson's most legendary silhouettes. The 2026 Fat Boy is bold by design.

What is offered:

• All on roads costs covered with 12 months West Australian registration.

• NEW Harley-Davidson® motorcycle owners get a complimentary one-year full membership to H.O.G.™

• 24 Month Factory warranty.

• Harley Roadside Assist.

• In House Finance and Insurance options available if required.

• Large Parts, Accessories & Workshop Departments for upgraded builds & apparel.

• Trade ins are welcome.

Call or text Kurt anytime on 0466 347 447 or email [email protected]

Always Check in Store for Details on Colour and Stock Availability

Specifications

  • Dimensions
    add remove
    • Length:
      2365 mm
    • Seat height, unladen:
      675 mm
    • Ground clearance:
      125 mm
    • Trail:
      104 mm
    • Wheelbase:
      1650 mm
    • Tyres, front specifications:
      160/60R18,70V,BW
    • Tyres, rear specifications:
      240/40R18,79V,BW
    • Fuel capacity:
      18.9 l
    • Oil capacity:
      4.2 l
    • Weight, as shipped:
      303 kg
    • Weight, in running order:
      314.79 kg
    • Tyre, type:
      Michelin® Scorcher 11 front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Custom
    • Bore:
      103.5 mm
    • Stroke:
      114.3 mm
    • Displacement:
      1923 cm3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      171 Nm
    • Engine torque (RPM):
      3000
    • Horsepower:
      103 HP / 77 kW @ 4800 rpm
    • Lean angle, right (deg.):
      25.6
    • Lean angle, left (deg.):
      25.6
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      47 mpg (5 l/100 km)
  • Drivetrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Machined, Lakester cast aluminum
    • Wheels, rear type:
      Machined, Lakester cast aluminum
    • Brakes, type:
      Front and rear silver, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
